Heavy Duty Skid Steer Trip Edge Poly Blade
The Arctic SK combines the plowing power of Arctic with the mobility of a skid steer. Featuring a universal mounting plate, a mounted crossover valve and mounting steps, the Arctic SK, quickly and easily locks into the standard adapter plate of skid steer to offer all the benefits of the Arctic Heavy Duty Trip Edge - Poly plow.
Features
1/2" x 6" High Carbon Steel Cutting Edge
With top hole bolt pattern
3/8” Polyethylene Moldboard
Throws snow further and faster resulting in less resistance and vehicle wear, and improved fuel economy.
4 Adjustable Compression Springs
To compensate for uneven plowing grounds
6 Laser-Cut Steel Reinforcing Ribs
Back our friction-less poly moldboard
6” Curved Deflector
Rolls the snow nicely, keeps it down on the blade and away from the vehicle's windshield.
Laser Cut Holes
For optional bolt on Wing kits
Unique Greaseable Centre Hinge
That provides so much stability it eliminates the need for a quadrant
Universal Mount
Attaches quickly & easily to the standard adapter plate of a skid steer
Specifications
| Plow Model | SK90 | SK96 | SK108 |
|---|---|---|---|
| Blade Length | 90" | 96" | 108" |
| Blade Height | 29" | 29" | 29" |
| Blade Skin | 3/8" Poly | 3/8" Poly | 3/8" Poly |
| Compressible Springs | 4 | 4 | 4 |
| Reinforced Ribs | 6 | 6 | 6 |
| Angling Cylinder | 1 1/2" x 10" | 1 1/2" x 10" | 1 1/2" x 10" |
| Plowing width at full blade angle | 78" | 83" | 94" |
| Approximate weight | 631 lbs | 674 lbs | 725 lbs |
| Cutting Edge | 1/2" x 6" Steel | 1/2" x 6" Steel | 1/2" x 6" Steel |
| Mounting Type | Detachable | Detachable | Detachable |
Approximate weight does not include undercarriage
Recommended Accessories
Curb Guard
The curb guard protects the edge of your plow against wear. It fits all sizes of blades. The curb guard is bolted to the first two cutting edge bolts.
Poly Cutting Edge
Part# 53688-84-B (for 84" blade), Part# 53688-B (for 90" blade), Part# 52421-N (for 90" & 96" HD blade), Part# 52422-N (for 102" & 108" blade)
Third Spring Kit
Part# for third spring kit - 53014-M, Part# for installation tool - 53031-M
Trip Edge WING Extensions
Turn your trip edge plow into a pusher with these pin on wings. Bolt-on brackets with easy-to-remove pins allow for quick installation and removal. Move up to 3 times the normal volume of snow by turning your blade into a push plow.

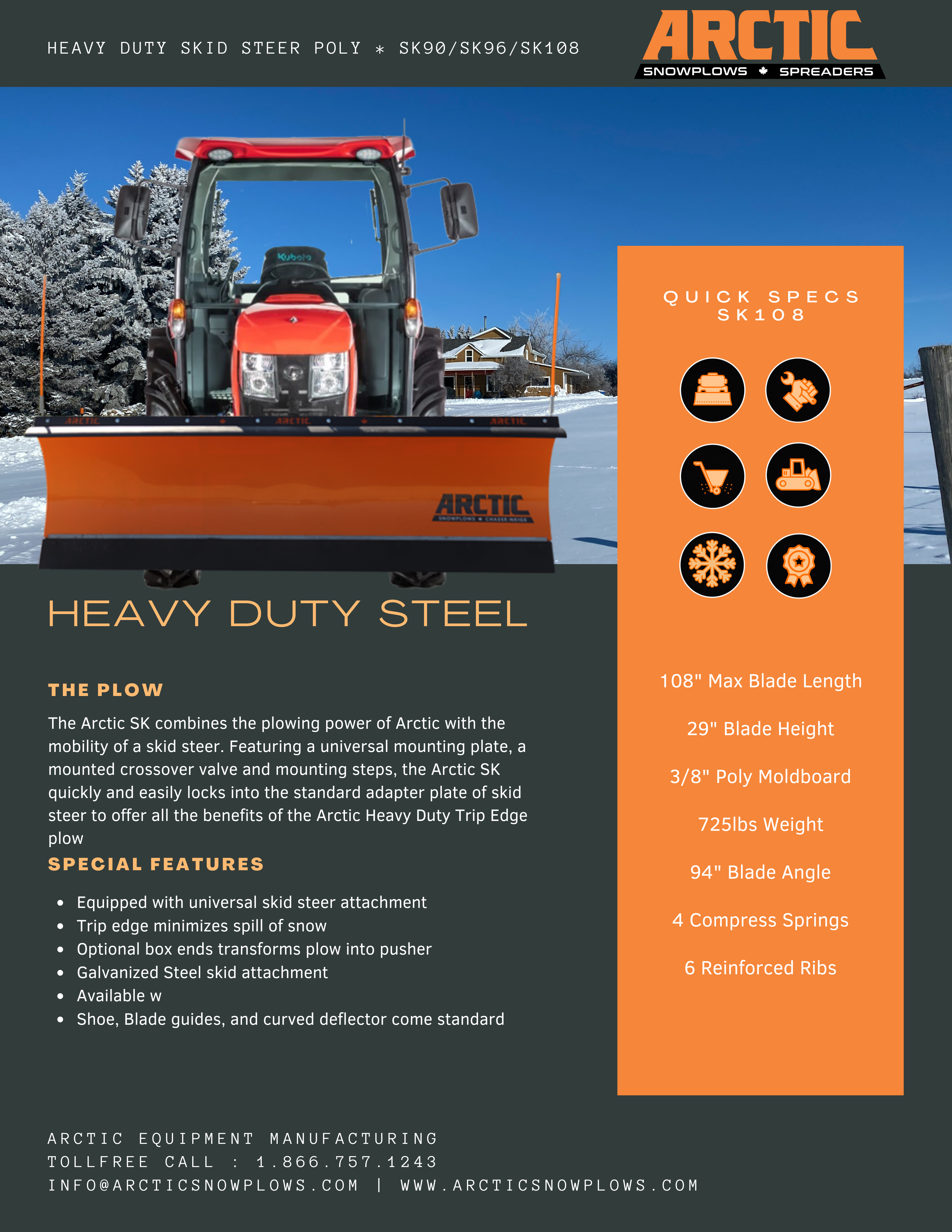

Literature
